Detailed specification:
| 1 | Liquid Type | Oil, water, and other liquid |
2 | Liquid Temperature | -30°-100° 3-phase controller inside for non-submersible/ controller outside for submersible |
3 | Speed regulation (optional) | - PWM amplitude 5V 50-800HZ Can be customized - 0-5V analog signal - Potentiometer: The resistance range 4.7K~20K |
4 | Power | DC Power Supply, Solar Panel, Battery |
1 | Product model | DC60G-12100PWM DC60G-12100VR DC60G-12100S | DC60G-24120PWM DC60G-24120VR DC60G-24120S | DC60G-36120PWM DC60G-36120VR DC60G-36120S | PWM: Speed regulation by PWM(50-800HZ/ 5V） VR:Speed regulation by 0-5V analog signal or potentiometer S: Fixed rotational speed |
2 | Rated Voltage | 12V DC | 24V DC | 36V DC | |
| 3 | Working voltage | 5-12V | 5-28V | 5-40V | Within this range, pump can work normally |
| 4 | Rated current | 5.4A(6.6A) | 4.5A(5A) | 3A(3.3A) | Closed outlet current (open pumping current) |
| 5 | Input Power | 65W(80W) | 108W(120W) | 108W(120W) | Closed outlet power (open pumping power) |

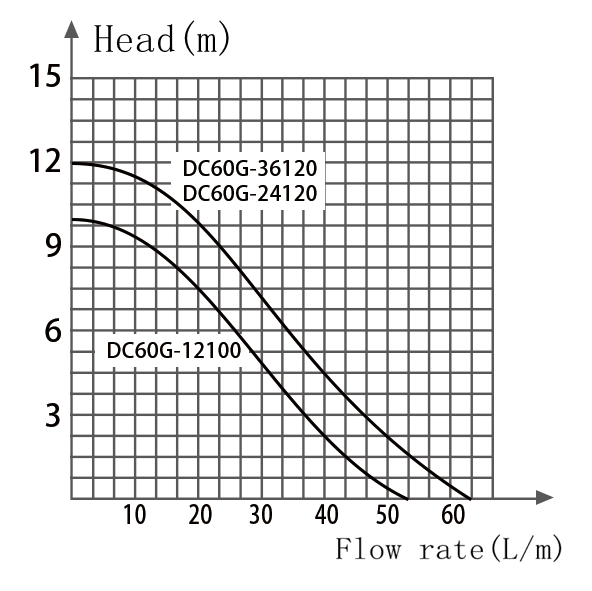

| 6 | Max. Flow rate | 3200L/H | 3800L/H | 3800L/H | Flow rate without connecting pipe |
| 7 | Max. Head | 10M | 12M | 12M | Static head |
| 8 | Min. Input power supply | 12V-7A | 24V-6A | 36V-4A |
